| DESIGN
FEATURES |
|
|
|
|
| Extra
thick wet end components |
For
extended wear life |
| Replaceable
wear liner |
Low
maintenance cost |
| Heavy
duty power |
Increased
mean time between maintenance |
| External
impeller adjustment |
Maintains
original efficiency: simple and fast |
| Maximum
parts interchangeability |
Entire
lines uses just five power ends |
| Sealing
Flexibility |
Choice
of packaging, mechanical seals |
| Application
flexibility |
Horizontal
and vertical |
| |
| |
|
|
| |
|
|
| |
|

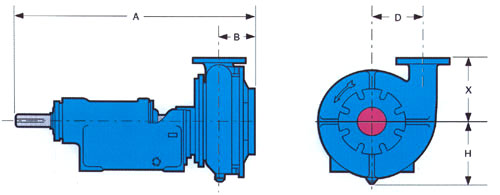

DIMENSIONS
|
|
Pump
Size
|
Frame
|
A
|
B
|
D
|
H
|
X
|
Weight
(Kg)
|
|
1
EJC 11
|
1
x 1.5-11
|
1J
|
787
|
76
|
149
|
159
|
178
|
100
|
|
1.5
EJC 14
|
1.5
x 2-14
|
2J
|
800
|
89
|
200
|
238
|
210
|
144
|
|
2
EJC 14
|
2
x 3-14
|
813
|
102
|
205
|
210
|
229
|
150
|
|
3
EJC 14
|
3
x 4-14
|
3J
|
933
|
121
|
213
|
270
|
235
|
200
|
|
4
EJC 14
|
4
x 6-14
|
946
|
133
|
232
|
295
|
267
|
216
|
|
6
EJC 14
|
6
x 6-14
|
4J
|
1070
|
143
|
241
|
346
|
318
|
323
|
|
8
EJC 18
|
8
x 10-18
|
1178
|
245
|
330
|
457
|
419
|
464
|
|
10
EJC 22
|
10
x 12-22
|
5J
|
1286
|
245
|
432
|
556
|
508
|
819
|
|

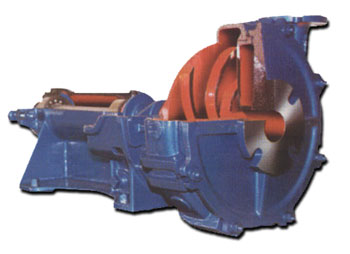

| MODEL
EJC SLURRY PUMP |
| |
| The
versatile Eagle EJC slurry pump is designed and engineered to
pump abrasive and corrosive slurries. Features such as replaceable
wear liner, shaft sleeve, extra thick casing walls and the heavy
duty bearing frame assembly make the Eagle EJC a robust slurry
pump. |
| |
| Various
materials of construction: 28% Chrome Iron, Cast Iron, Stainless
Steel and CD4MCU. |
| Available
in eight sizes up to 250mm discharge. |
| Also
available: Vertical cantilever arrangement. |
| |
 |
| SERVICES |
| |
- Back
Fill
- Clay
and Sand Slurries
- Wet
Scrubber Systems
- Dirty
Water
- Waste
Sludge
- 70%
Kaolin Clay
- Fracing
Slurries
- Carbon
Slurry
- Paper
Mill Wastes and Liquors
- Lime
Mud
- Precipitated
CaCo3
|
| |

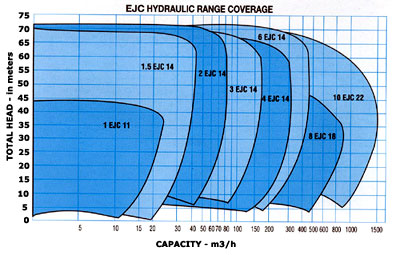

- Capacities
to 1600 m3/h
- Heads
to 73 meters
- Temperature
to 120 C
- Pressure
to 1034 kPa
- Spherical
Solids to 57 m/m
|
|
|
| DESIGN
FEATURES |
| |
| Suction
Cover Liner |
| Replaceable
part takes all wear on suction side of casing. |
| |
| Impeller |
Best
design for slurry services/proven by wear testing and field
experience.
Back pump-out vanes reduce stuffing box pressure, keep solids
out of stuffing box. |
| |
| Discharge
Nozzle |
| May
be rotated in field to any of eight positions. |
| |
| Casing |
Extra
thick wall sections for extended wear life, reduced maintenance.
Dual volute design where necessary to reduce radial loads. |
| |
| Shaft
Sleeve |
| Hook-type
design with gasket for shaft protection |
| |
| Bearings |
| Radial
and thrust bearings are sized for 3-year life (25 000 hours).
Grease or oil lubrication. |
| |
| Dynamic
Seal |
| Expeller
option for absolute dry box sealing. No outside flush required. |
| |
| External
Impeller Adjustment |
| Maintains
maximum efficiency by simple adjustment. |
| |
| Heavy
Duty Shaft |
| Large
diameters to handle high loads, reduce shaft detection. |
| |
| Mechanical
Seal |
A
wide range of mechanical seals are available for sealing flexibility.
Optional TaperBore™ seal chamber provides increased seal
life. |
|
